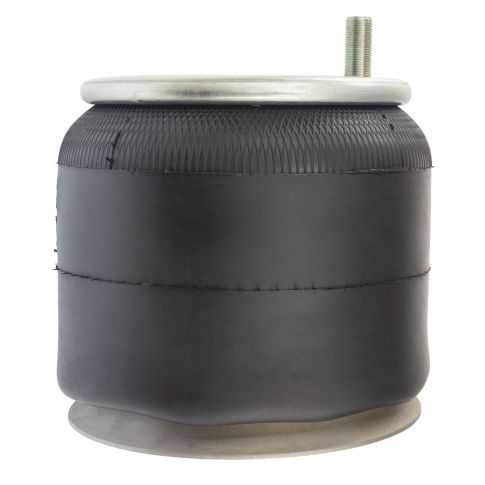

Hendrickson Trailer Air Spring Bag Replaces: W01-358-9640

Hendrickson Trailer Air Spring Bag Replaces: W01-358-9640

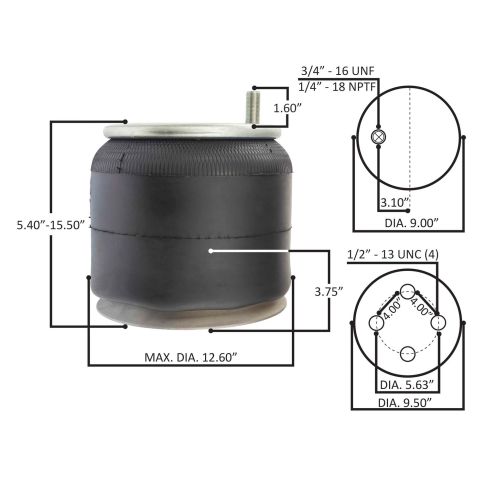

AIR SPRING
Air Spring Type:Rolling Lobe
Base Plate Material:Aluminum
Bottom Configuration:2.25″ C/C Inch
Bottom Plate Bolt Hole Quantity:4
Bottom Plate Diameter:9.5 Inch
Bottom Plate to Top Plate Mounting Alignment:Parallel
Compressed Length:5.4 Inch
Extended Length:15.8 Inch
Load Rating at 100 PSI:7050 Pound
Load Rating at 80 PSI:5640 Pound
Maximum Diameter:10.12 Inch

Top Plate Bolt Hole Quantity:1
Top Plate Diameter:9 Inch

Replaces:

• Batco: 10-99640
• Goodyear: 1R12-367
• Dayton Parts: 352-9640
• Automann: 566.ER9640
• Continental-ContiTech: 64395
• Triangle Air Springs: 8427
• Continental-ContiTech: 9 10-12 A 427
• Continental-ContiTech: 91012A427
• Firestone: 9640
• Automann: AB1DK23H-9640
• Automann: AMAB1DK23H9640
• Triangle Air Springs: AS-8427
• Hendrickson: C20223
• Euclid: E-FS9640
• Genuine Newstar: FIR-W01-358-9640
• Meritor: FS9640
• Hendrickson: HS190T
• Hendrickson: HT190T
• BWP: M-3561
• Meritor: RFS9640
• Genuine Newstar: S-34564
• Hendrickson: S20223
• Genuine Newstar: S34564
• Torque: TR9640
• Firestone: W01-358-9640
• World American: WA01-9640
