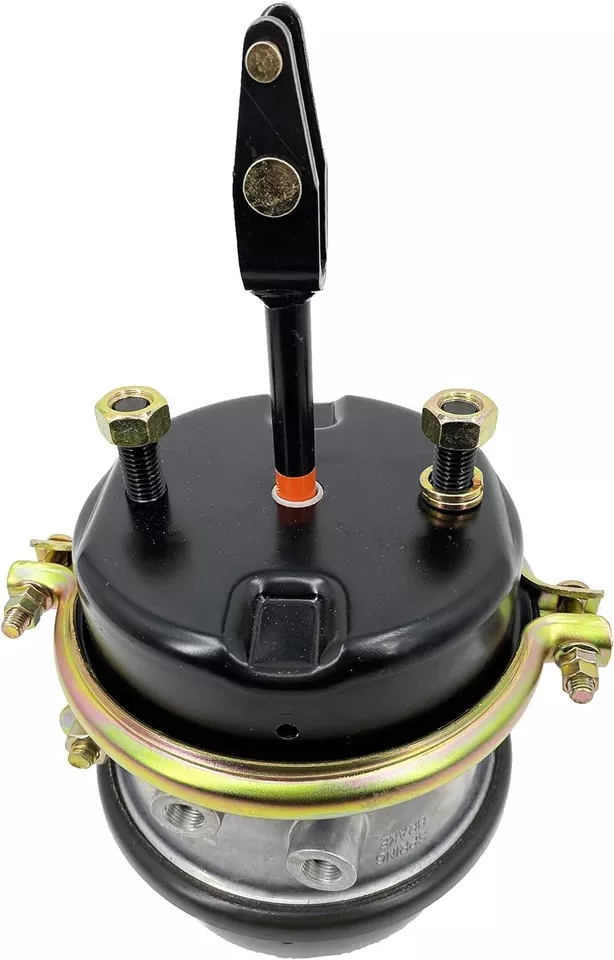

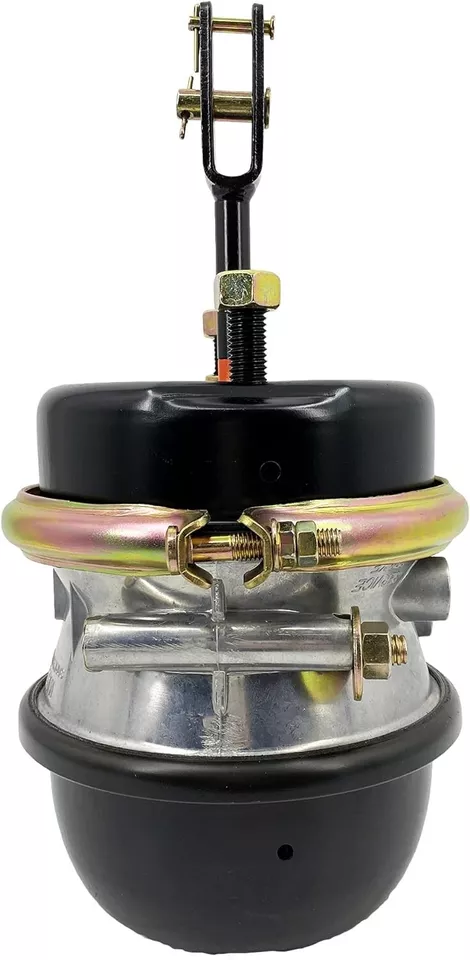

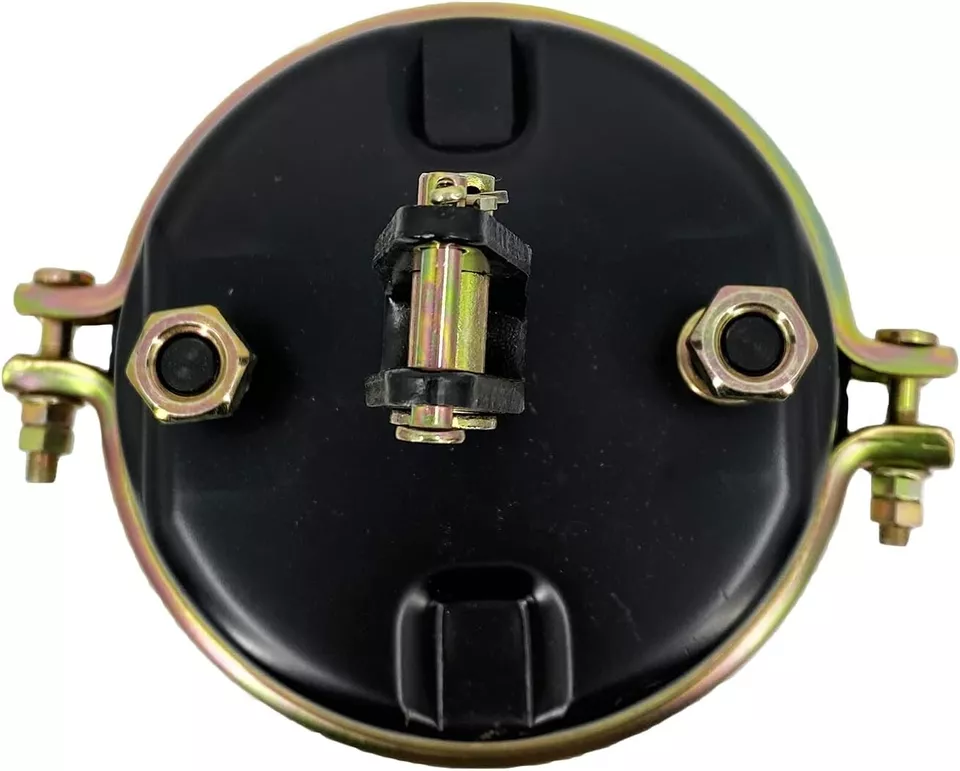

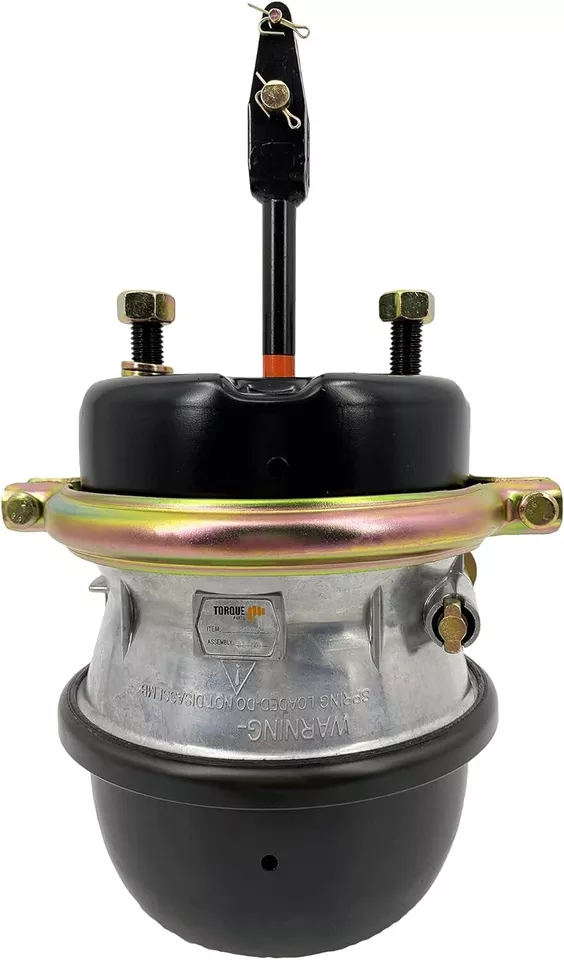

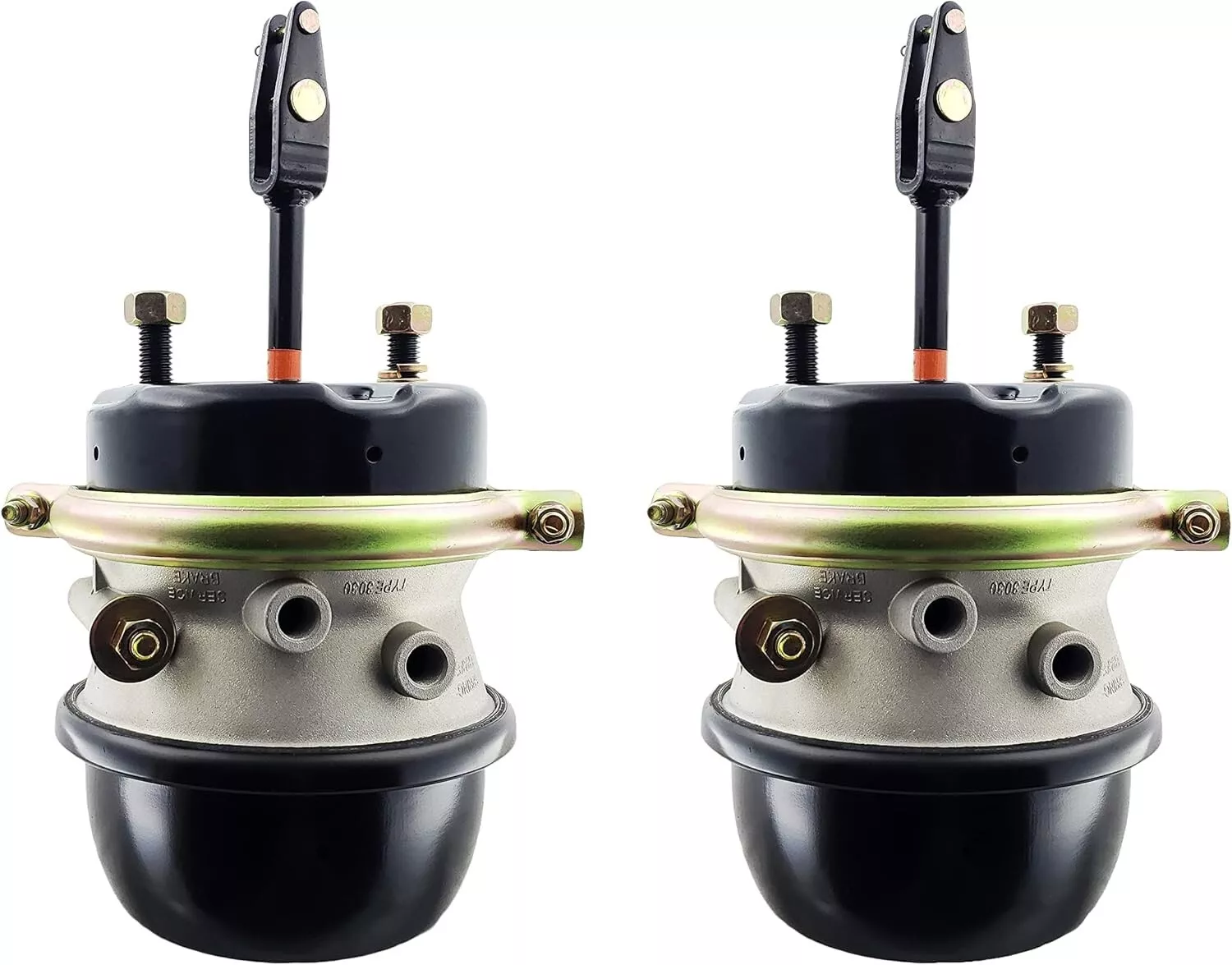

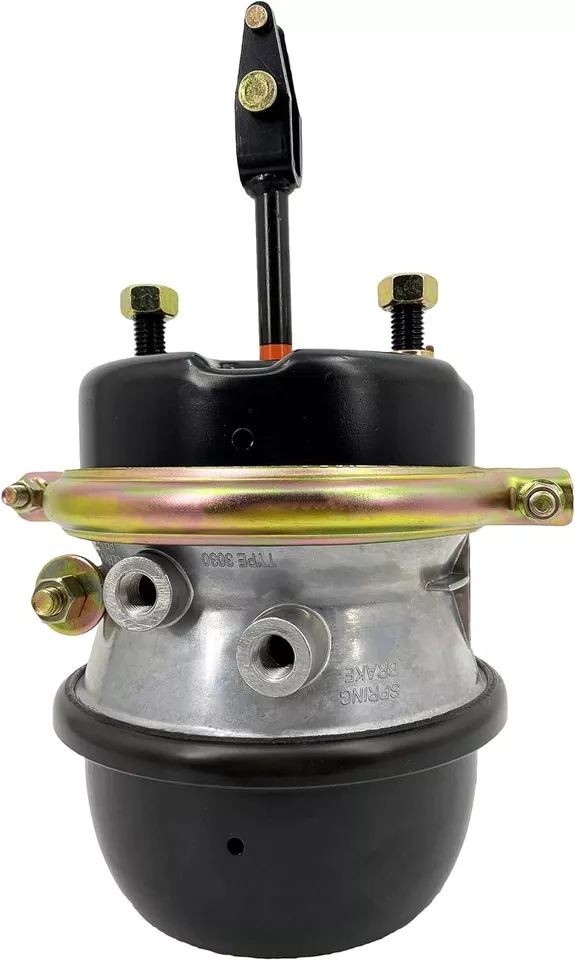

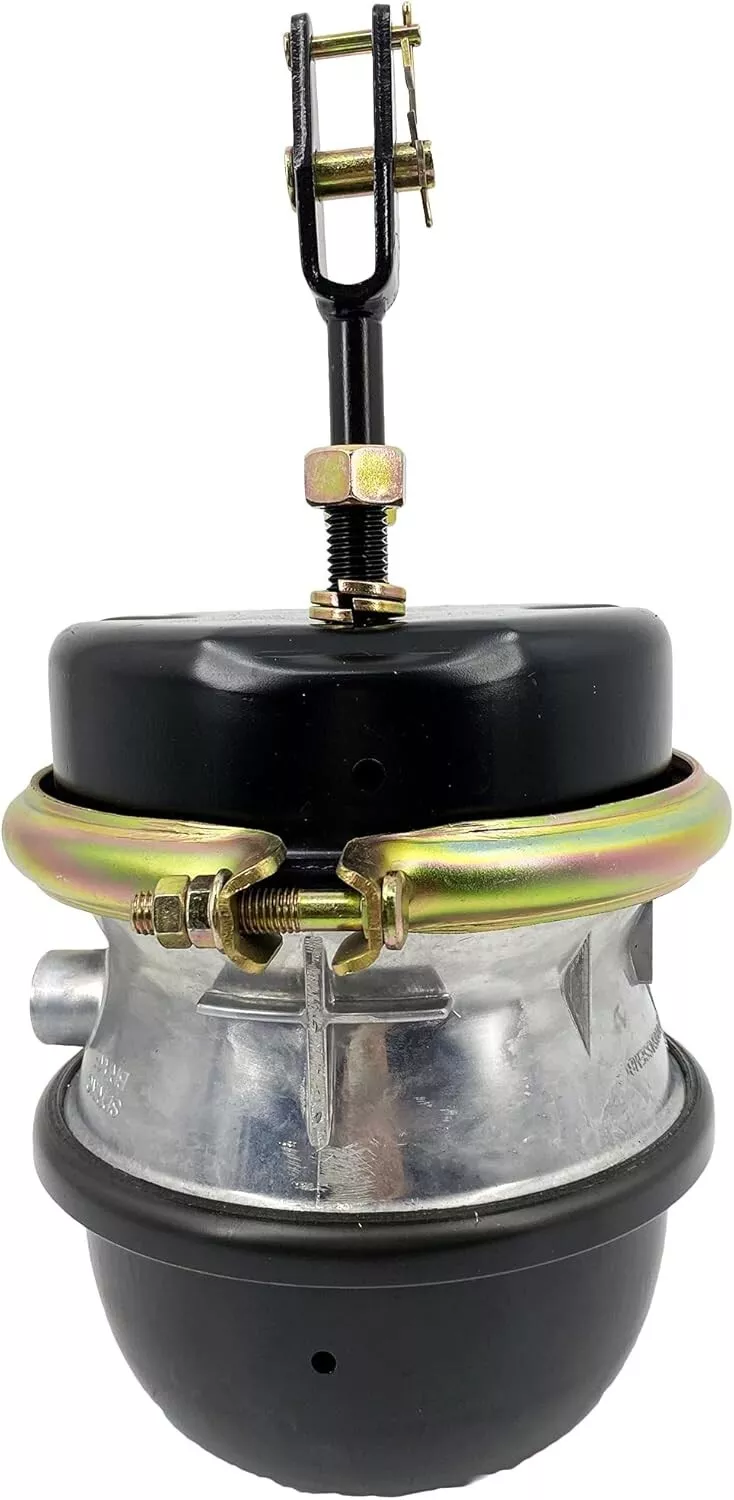

Pair of Air Brake Chamber Welded Clevis 2.5″ Short Stroke 3030 Rep: GC3030GW
$119.99
Description
Cross: Bendix K067114 K129605 Haldex GC3030S4CW GC3030CW
- TYPE – Air Brake Chamber Type 3030 30/30 30 30 Welded Clevis
- REPLACEMENT – K129605 K067114 // GC3030CW GC3030S4CW // Other BTS-3030-WCR GTA-3030-WCR // 179.SB3030SW1100
- SPECS – Actuator Type Size: 3030 // Stroke Type: Standard // Available Stroke: 2-1/2″ // Length from mounting bracket to end of Spring Housing: 9″ // Length of Piggyback: 6-13/16″ // Dimension at rolled Spring Housing flange: 8-5/16″ // Dimension at Service Clampband: 10-3/16″ // Pushrod Length from face of Service Housing: 1″ // Distance to Clevis Pin centerline from face of Service Housing: 2-1/4″ // Weight: 21.3 lbs.
- FEATURES – Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue // Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life // World Class Diaphragm; High quality rubber compound, resistant to heat and cold // Rugged Service Housing; 9 gauge steel, powder coated // Self-piloting Dust Shield
Additional information
| Condition |
New |
|---|---|
| Brand |
Unbranded |
| Warranty |
1 Year |
| Model Number | |
| Region of Manufacture |
Turkey |
