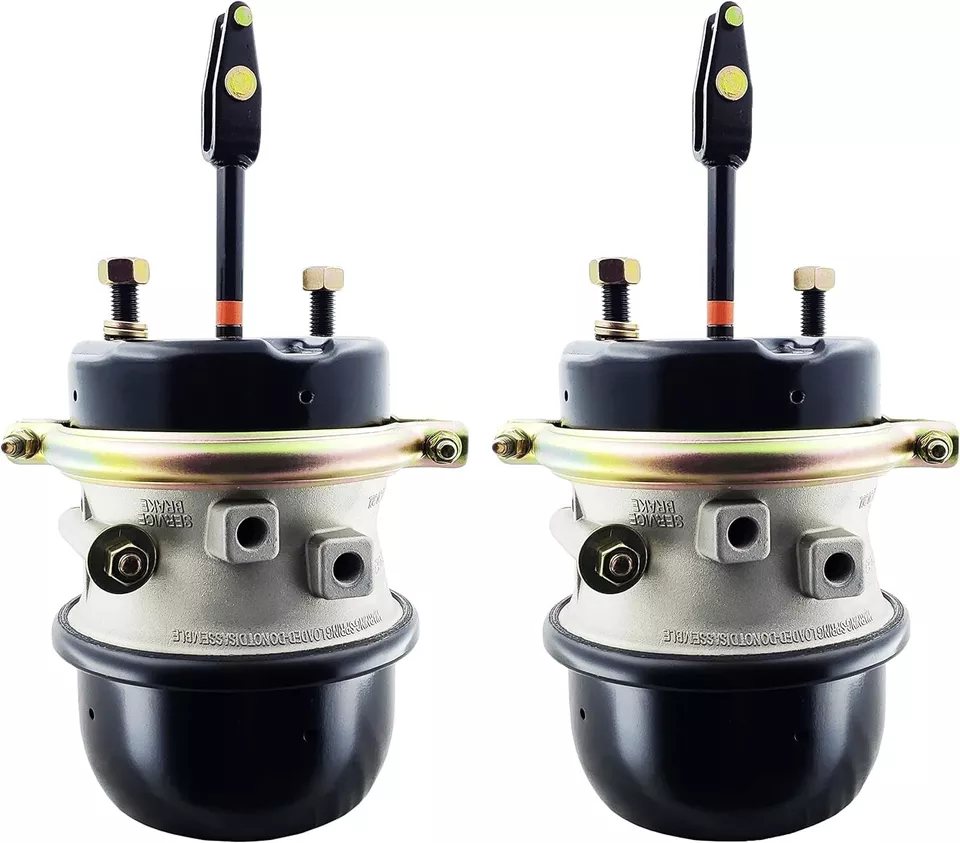

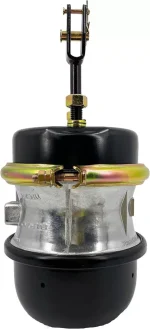

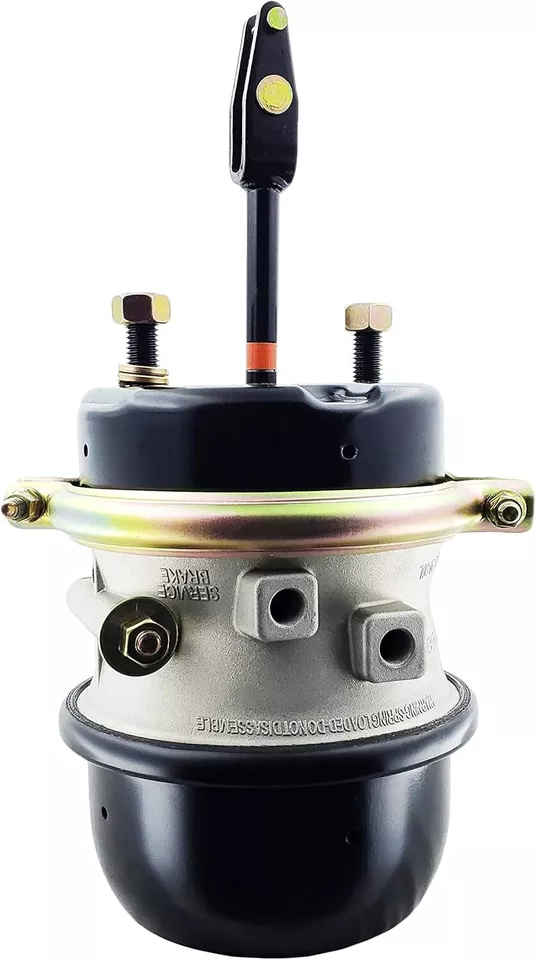

Pair of Air Brake Chamber Welded Clevis 3″ Long Stroke 3030 Rep: GC3030LCW
$149.99
Description
- TYPE – Long Stroke Air Brake Chamber Type 3030 30/30 30 30 Welded Clevis
- REPLACEMENT – Bendix NT3030ELSWC NT3030ELS-WC // Haldex GC3030LCW LC3030LCW // Freightliner HDX1373030215 // Automann 179.SB3030SLW225 // IHC 3541891C91 // Others BTS-3030LS-WCR GTA-3030LS-WCR
- SPECS – Actuator Type Size: 3030 // Stroke Type: Long // Available Stroke: 3″ // Length from mounting bracket to end of Spring Housing: 9-7/8″ // Length of Piggyback: 7-3/8″ // Dimension at rolled Spring Housing flange: 8-5/16″ // Dimension at Service Clampband: 10-3/16″ // Pushrod Length from face of Service Housing: 1″ // Distance to Clevis Pin centerline from face of Service Housing: 2-1/4″ // Weight: 21.9 lbs.
- FEATURES – Combination with Welded Clevis Long Stroke Size 3030 Square Bosses // Superior Power Spring Technology; Advanced powder coating process; // Resists corrosion and fatigue // Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life // World Class Diaphragm; High quality rubber compound, resistant to heat and cold // Self-piloting Dust Shield // Sizes to fit all drum brake applications
Additional information
| Condition |
New |
|---|---|
| Brand |
Unbranded |
| Warranty |
1 Year |
| Model Number | |
| Region of Manufacture |
Turkey |
